R10

R15

R20

R30

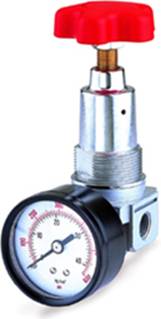

R80

DESCRIPTION\TYPE

R10

R15

R20

R80

R30

PORT SIZE(PT,NPT)

1/4"(1/8")

1/4"3/8"1/2"

1/4"

ADJ.PRESSURE RANGE(kgf/cm²)

0.5~9.5

0.5~9.9

0.5~35

PROOF PRESSURE(kgf/cm²)

10.2

15

40

AMBIENT TEMP.

5-60C

GAUGE PORT(PT, NPT)

1/8"

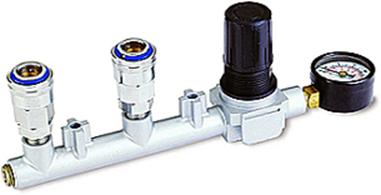

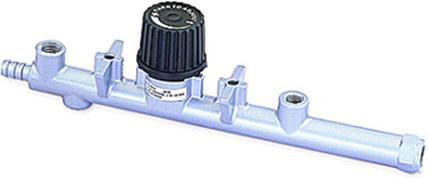

R132N

R272N

R402N

R412N

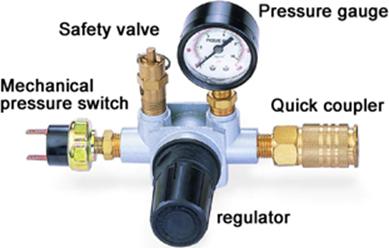

Model no: E80
1.All components have been completely assembled.
2.The position for each component can be change designed according to customer's specification requirements.

DESCRIPTION\TYPE

R132N

R402N

R272N

R412N

E80

PORT SIZE(PT,NPT)

1/4" NPT

ADJ.PRESSURE RANGE(kgf/cm²)

0.5~9.5

0.5~9.9

PROOF PRESSURE(kgf/cm²)

10.2

15

AMBIENT TEMP.

5-60C

GAUGE PORT (PT, NPT)

1/8"NPT
