Home -->air tool>  airbrush > Airbrush & Mini Air Pump



Page 1/ 7

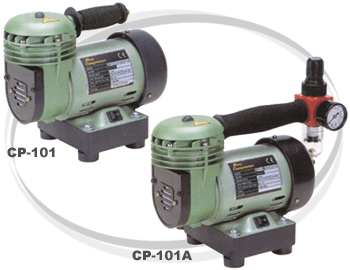

Oil-less Diaphragm Compressor / Type: CP-101, 101A


Description:
@
This compact design portable diaphragm compressor provides you a convenient Airbrush work. The injected aluminum body
of high resistance is durable. It is much quiet than the piston  type compressor during operation. the mechanisms are
mounted on sealed oil-less bearings. Therefore, the compressor requires no lubrication. This simply and easily permits an
oil-free air supply. Suitable for all Airbrush work.

Electric motor:

Air displacement:
Connection:
Max. pressure:
Electric cable:
Weight:
RPM:
AMP:
1/8HP 110V/220V, 60/50Hz
110V/60Hz, 0.90CFM (25L/min)
240V/50Hz, 0.75CFM (21L/min)
1/8"
50PSI (3.5kgs)
1.5M
4.3kgs
110V/1700, 220V/1400
110V/1A, 220V/0.5A

@

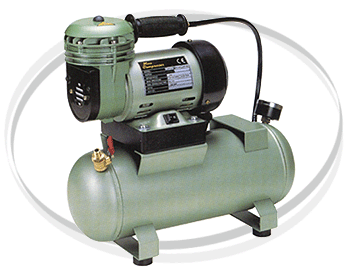

Oil-less Diaphragm Compressor / Type:CP-102


Description:
@
Electric motor:

Air displacement:
Connection:
Max. pressure:
Electric cable:
Weight:
RPM:
AMP:
Tank size:
Tank capacity:
1/8HP 110V/220V, 60/50Hz
110V/60Hz, 0.90CFM (25L/min)
240V/50Hz, 0.75CFM (21L/min)
1/8"
50PSI (3.5kgs)
1.5M
7.5kgs
110V/1700, 220V/1400, 240V/1400
110V/1A, 220V/0.5A
30cmx12.5cmx12.5cm
3,500C.C.

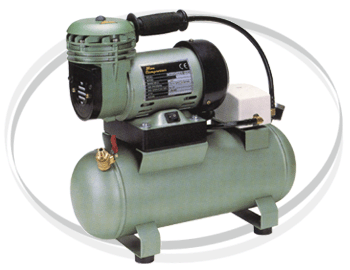

Oil-less Diaphragm Compressor / Type:CP-103


Description:
@
Electric motor:

Air displacement:
Connection:
Max. pressure:
Electric cable:
Weight:
RPM:
AMP:
Tank size:
Tank capacity:
1/8HP 110V/220V, 60/50H
110V/60Hz, 0.90CFM (25L/min)
240V/50Hz, 0.75CFM (21L/min)
1/8"
38PSI (2.8kgs)
1.5M
7.7kgs
110V/1700, 220V/1400, 240V/1400
110V/1A, 220V/0.5A
30cmx12.5cmx12.5cm
3,500C.C.
Air pressure auto switch
