bench vise BV700

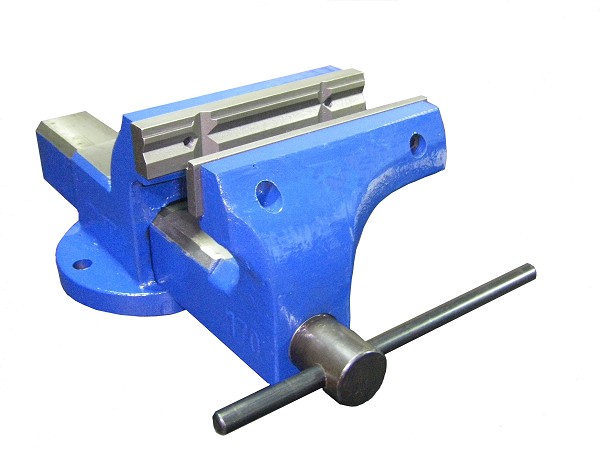

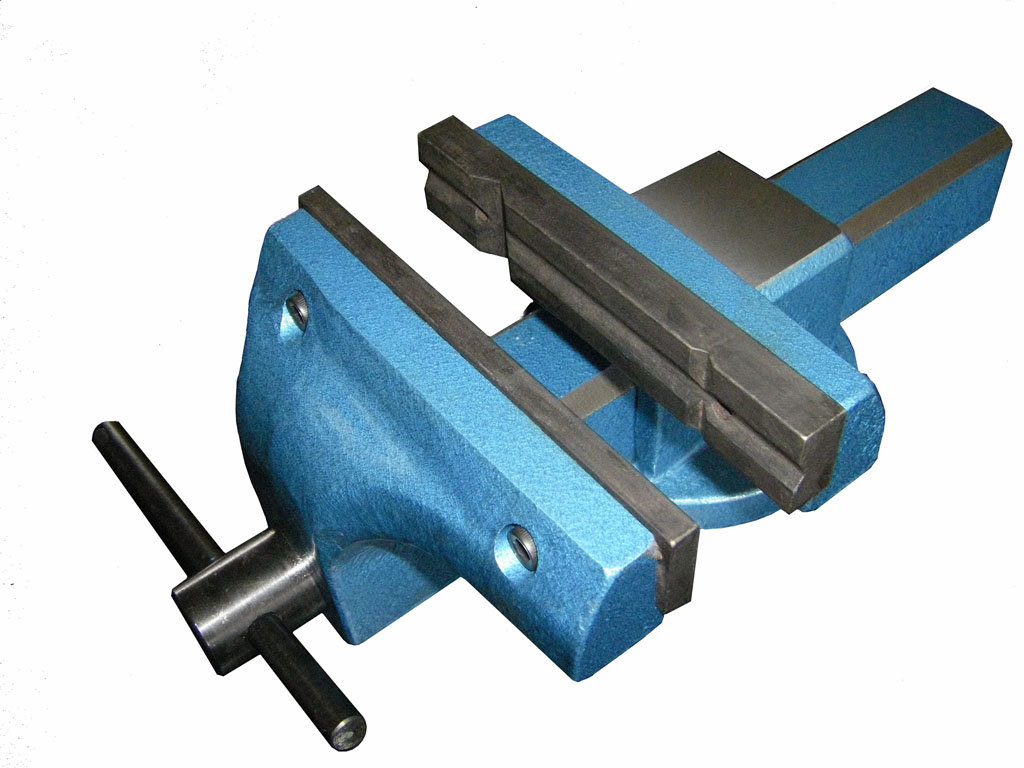

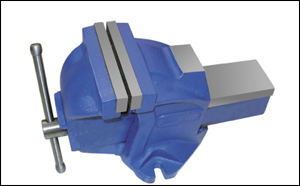

Patented bench vise with extra long clamping arm / BV-700 series

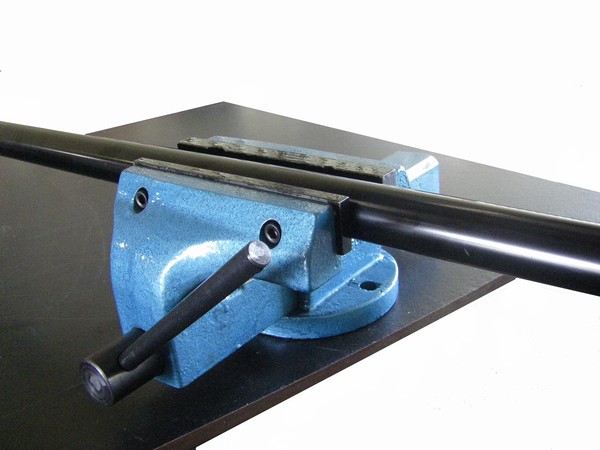

From its outlook, it is different from traditional shape - straight narrow jaw clutch across the central part. With its extra long clamping arm  which can clamp longer object through jaw, it is installed with ball bearing installed inside spindle which gives user to operate this vise in a quick & smooth way. Hardener jaw block with " V " grooves is a special design which can hold different shapes of object  firmly without slipping away during machining operation.

What is more. manual power - 20 kgs  only by turning spindle can transform its clamping power up to 1200 kgs.

It is constructed with ductile cast iron ( FCD 45 ).

German Patent No.: NR20201001670.2        US PATENT NO.: M376380, M387730 M397881



¡@

Item No. Jaw Opening Jaw width Jaw depth Spindle length

 ( mm )

Overall Length

 ( mm )

Clamping Capacity Net Weight / kgs
BV700-130 130 mm 130 mm 75 mm 390 mm 400 mm 1200 kg 11.1 kgs
BV700-170 170 mm 170 mm 75 mm 390 mm 400 mm 1200  kg 12.5 kgs
