Page 1 / 5   Air Die Grinder :

¡@

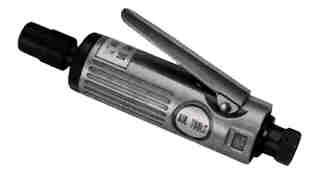

DG-201  Mini Die Grinder ( Front Exhaust )

Speed ( RPM )

18000

Capacity

1/4"

Air Pressure ( PSI )

90

Air Consumption ( CFM )

15

Air Inlet ( NPT )

1/4"

Hose Size ( ID )

3/8"

Overall Length

5-1/2"

Weight ( KG )

0.4

Collect Size : 1/4" , 1/8" ( 6, 3 mm )





DG-203  Mini Die Grinder ( Rear  Exhaust )

Speed ( RPM )

20000

Capacity

1/4"

Air Pressure ( PSI )

90

Air Consumption ( CFM )

17

Air Inlet ( NPT )

1/4"

Hose Size ( ID )

3/8"

Overall Length

6-1/4"

Weight ( KG )

0.57

Collect Size :1/4" , 1/8" ( 6, 3 mm )





DG-204  Mini Die Grinder ( Rear  Exhaust )

Speed ( RPM )

25000

Capacity

1/4"

Air Pressure ( PSI )

90

Air Consumption ( CFM )

15

Air Inlet ( NPT )

1/4"

Hose Size ( ID )

3/8"

Overall Length

5-1/2"

Weight ( KG )

0.37

Collect Size :1/4" , 1/8" ( 6, 3 mm )





DG-204G  Angle Head Grinder ( Rear Exhaust )

Speed ( RPM )

18000

Capacity

1/4"

Air Pressure ( PSI )

90

Air Consumption ( CFM )

15

Air Inlet ( NPT )

1/4"

Hose Size ( ID )

3/8"

Overall Length

5-3/4"

Weight ( KG )

0.37

Collect Size :1/4" , 1/8" ( 6, 3 mm )
