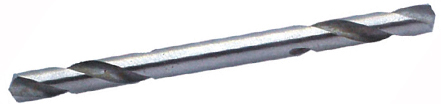

HSS double end drill bits

¡@

* this drills have flutes and cutting points on
both ends. this allows the user with the ability to
reverse the drill and utilize both ends.
* 135 split point starts drilling immediately.
* twice as many holes as a single end drill bit.
* used primarily in small machine shops and
automatic body shops for drilling holes for
sheet metal screws or rivets.
* for drilling thin sheet metals, steel sheet, sheet
brass, sheet aluminum and plastic sheets.

¡@

 dia.

working length

overall length

ORDER NUMBER

2

8

38

M106-20

2.5

10

43

M106-25

3

11

46

M106-30

3.2

11

49

M106-32

3.5

14

52

M106-35

4

14

55

M106-40

4.5

17

58

M106-45

5

17

62

M106-50

5.5

19

66

M106-55

6

19

66

M106-60

6.5

22

70

M106-65

¡@



 dia.

working length

overall length

ORDER NUMBER

1/16

3/8

1-1/2

M106-116

5/64

3/8

1-1/2

M106-564

3/32

3/8

1-11/16

M106-332

7/64

1/2

1-13/16

M106-764

1/8

1/2

1-13/16

M106-180

9/64

5/8

2-1/16

M106-964

5/32

5/8

2-3/16

M106-532

3/16

5/8

2-5/16

M106-316

7/32

3/4

2-5/8

M106-732

1/4

3/4

2-7/8

M106-140

¡@
