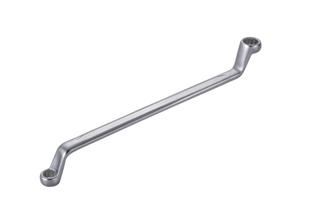

75¢X DOUBLE RING OFFSET WRENCH / Model- 38-01

¡@

¡@

  • Made with chrome vanadium steel (6140)
  • Mirror polish & satin finish
  • Flat shaped body.
  • Ergonomic design.
  • 15¢X offset at open-end.
  • More extensive application range open-end.
  • Proper fit-lateral force applying system.
  • Deeper accessibility at ring head.
  • Accorded with DIN standard.


Metric

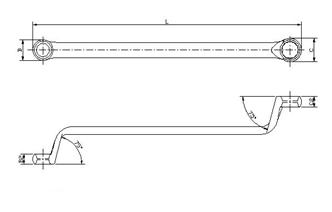

SIZE B B2 C C2 L(mm)
6x7 10.2 5.9 12.5 6.6 168.0
8x9 13.7 7 15.5  7 183.0
8x10 13.7 7 15.5  7 183.0
10x11 16.8 7.5 18.2  7.5 198.0
10x12 16.8 7.5 18.2  7.5 198.0
11x13 19.8 8.3 21.6  7.8 217.0
12x13 19.8 8.3 21.6  7.8 217.0
12x14 19.8 8.3 21.6  7.8 217.0
14x15 22.7 9 24.7  9 239.0
14x17 25.3 9.2 26  9.5 260.0
16x17 25.3 9.2 26  9.5 260.0
17x19 28.6 10.3 29.8  10.8 292.0
18x19 28.6 10.3 29.8  10.8 292.0
19x21 31.1 10.4 34.6  11.5 318.0
19x22 31.1 10.4 34.6  11.5 318.0
20x22 31.1 10.4 34.6  11.5 318.0
21x23 32.5 10.8 35.6 12 327.0
22x24 32.5 10.8 35.6 12 327.0
23x26 36.5 11.8 41.4 13.7 339.0
24x26 36.5 11.8 41.4 13.7 339.0
24x27 36.5 11.8 41.4 13.7 339.0
25x28 37 12.1 42.2 13.9 347.0
30x32 46.1 13.1 49.3 14.6 362.0
Set Content
Metric Set 6x7-8x9-10x11-12x13-14x15-16x17-18x19-20x22

 SAE

SIZE B B2 C C2 L(mm)
1/4¡¨x5/16¡¨ 10 6 12.5 6.6 168.0
5/16¡¨x3/8¡¨ 13.7 7 15.5 7 183.0
3/8¡¨x7/16¡¨ 16.8 7.5 18.2 7.5 198.0
1/2¡¨x9/16¡¨ 19.8 8.3 21.6 7.8 217.0
9/16¡¨x11/16¡¨ 25.3 9.2 26 9.5 260.0
11/16¡¨x3/4¡¨ 28.6 10.3 29.8 10.8 292.0
3/4¡¨x7/8¡¨ 31 10.4 34.6 11.4 318.0
7/8¡¨x15/16¡¨ 32.5 10.8 35.6 11.9 327.0
Set Content
SAE-SET 1/4¡¨x5/16¡¨-5/16¡¨x3/8¡¨-3/8¡¨x7/16¡¨-1/2¡¨x9/16¡¨-9/16¡¨x11/16¡¨-11/16¡¨x3/4¡¨-3/4¡¨x7/8¡¨-7/8¡¨x15/16¡¨
